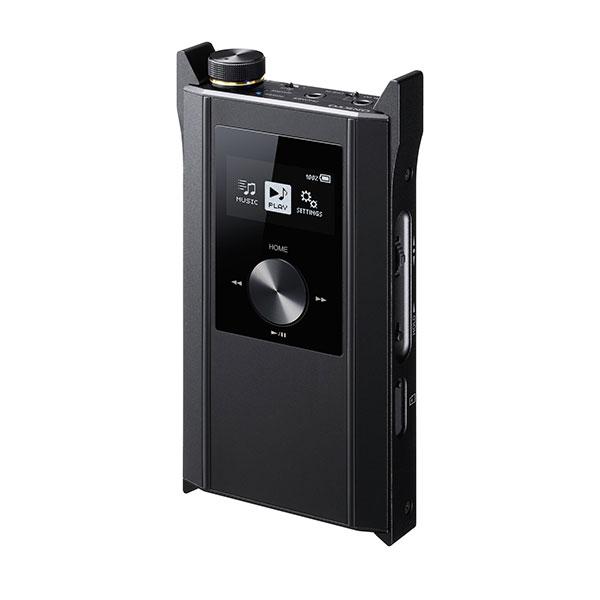

Onkyo DAC-HA300

Onkyo DAC-HA300

Onkyo DAC-HA300

Power Output 170 mW + 170 mW
(32 Ohms, 1 kHz, 10% THD, JEITA)
80 mW + 80 mW
(300 Ohms, 1 kHz, 10% THD, JEITA)
40 mW + 40 mW
(600 Ohms, 1 kHz, 10% THD, JEITA)
THD+N (Total Harmonic Distortion + Noise)
0.004% (32 Ohms, 1 kHz,
100 mW + 100 mW, JEITA)
Frequency Response 10 Hz–80 kHz (Audio IN)
Max. Input Power 2 Vrms (Audio IN)
Headphone Impedance 8 Ohms–600 Ohms
Connections
Input Terminals 3.5 mm Mini Jack
(Optical/Coaxial/Analog Switching),
USB A-Type (USB 2.0),
Micro USB B-Type (USB 2.0)
Headphone Output 3.5 mm Mini Jack
General
Battery Operation Time Approx. 7 Hours
(Apple iOS Device, USB-A IN, 32 Ohms,
1 mW + 1 mW Output, Mode: Low)
Charging Time Approx. 9 Hours (Using USB Cable and PC)
Sampling Frequency/Bit Depth
192 kHz/24-bit / 5.6 MHz DSD
Dimensions Excluding Protrusions (W x H x D)
69.6 x 21.5 x 123 mm
(2 3/4?x 27/32?x 4 27/32?)
Weight 280 g (7.5 oz)
CARTON
Dimensions (W x H x D) 170 x 130 x 70 mm
(6 11/16? x 5 1/8? x 2 3/4?)
Weight 460 g (16.2 oz)
UPC CODE
(B) 751398012280
Supplied Accessories
• DC power supply USB-A cable for recharging via computer
• USB cable for computer connection (USB Micro-B to USB-A connector)
• RCA to mini-plug cable for coaxial digital connection
• Rubber band (x2) for media player attachment
