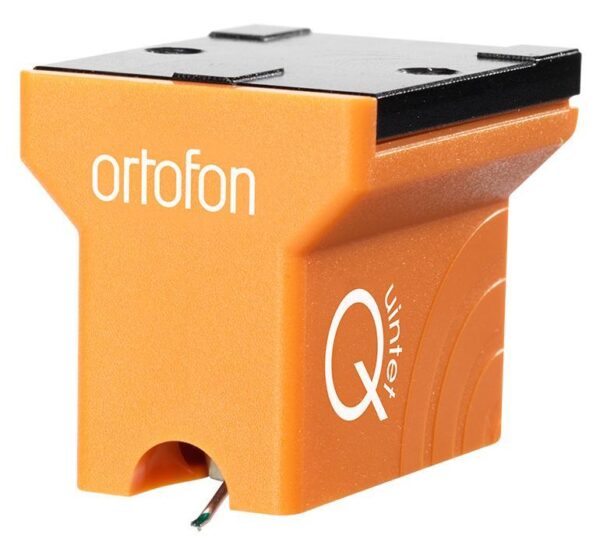

Ortofon Quintet Bronze

Descrizione

Ortofon Quintet Bronze

Output voltage at 1000 Hz, 5cm/sec. – 0.3 mV
Channel balance at 1 kHz – 23 dB
Channel separation at 15 kHz – > 15 dB
Frequency range at – 3dB – 20-25.000 Hz
Frequency response 20-20.000 Hz – +/-1.5 dB
Tracking ability at 315Hz at recommended tracking force *) – 80 µm
Compliance, dynamic, lateral – 15 µm/mN
Stylus type – Nude Fine Line
Stylus tip radius – r/R 8/40 µm
Tracking force range – 2.1-2.5 g (21-25 mN)
Tracking force, recommended – 2.3 g (23 mN)
*) Typical value

Tracking angle – 20°
Internal impedance, DC resistance – 5 Ohm
Recommended load impedance – > 20 Ohm
Cartridge body material – ABS/Aluminium
Coil wire material – Pure 4-nines copper
Cartridge colour – Bronze
Cartridge weight – 9 gram
